Key Features
- Switchable Band Pass Filters8
- Bypass Path for Off Chip Filter
- Excellent Rejection-50dBc
- Fast Tuning Speed<200nS
- Single +5V Supply
- compact size5x5 mm
Applications
- Wideband Receivers & SDRs
- EW / ECM / C-UAS
- Telecom & SatCom
- Test & Measurement
- Ideal for Low SWaP
Architecture

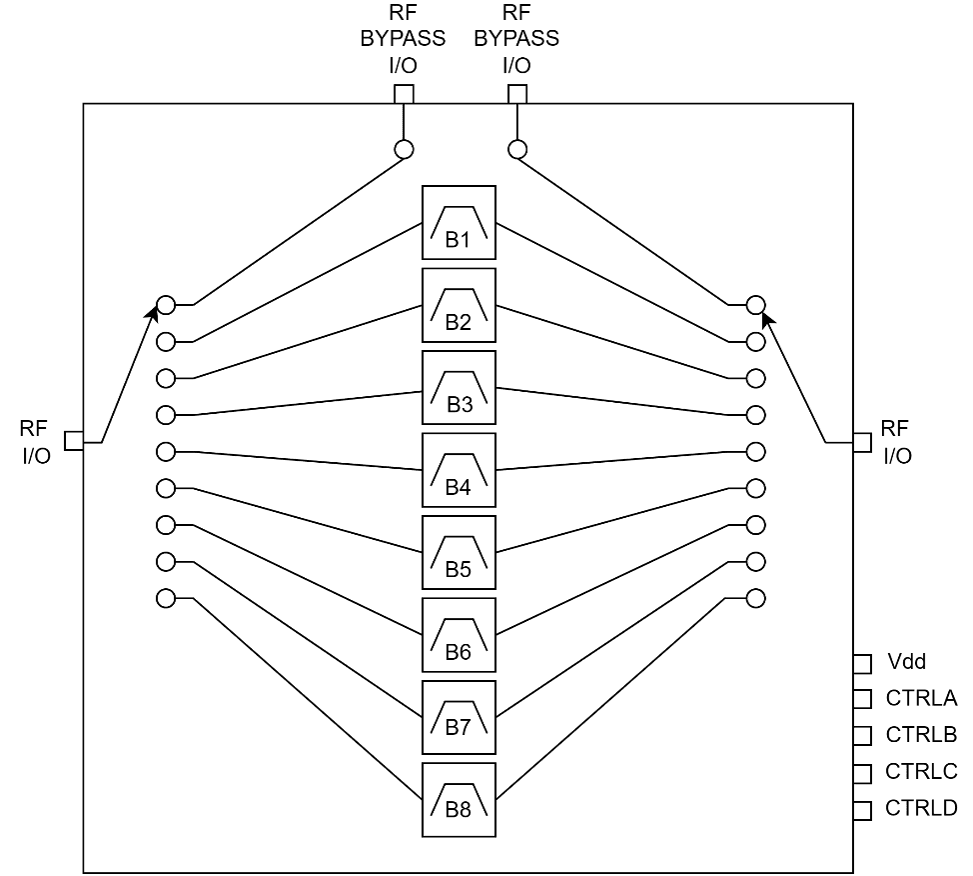

ATEK672N5 Block Diagram
ATEK672N5 is a GaAs MMIC filter bank with eight sub-octave filters offering fast <200nS tuning speed and excellent rejection of -50dBc from 2 to 18 GHz. Bypass ports are integrated to enable the addition of an external filter, through line, or amplification. The RF input and outputs are bidirectional and internally matched to 50 ohms for low SWaP transmit and receive applications.The MMIC filter bank is powered by a single +5V supply drawing 18.5 mA with a 4-bit word controlling the selection of the 8 BPFs and bypass path.Housed in 5x5 mm QFN surface mount package, the monolithic filter bank IC inherently minimizes phase noise degradation caused by mechanical vibration (microphonics).MMICs and Evaluation Boards are available from stock. Custom package configurations, MMIC die, and module options are available upon request.
Technical Specifications
| Parameter | Condition | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Frequency Range | 2 - 18 | GHz | |||
| 3dB Bandwidth (High Pass 3dB cutoff - Low Pass 3dB cutoff) | Band 1 | 1.7 - 4.3 | dB | ||
| Band 2 | 3.5 - 6.4 | dB | |||
| Band 3 | 5.5 - 8.5 | dB | |||
| Band 4 | 7.3 - 10.6 | dB | |||
| Band 5 | 9 - 12.9 | dB | |||
| Band 6 | 11.1 - 14.9 | dB | |||
| Band 7 | 12.4 - 17.4 | dB | |||
| Band 8 | 14.8 - 19.5 | dB | |||
| External Bypass | LF - 18 | dB | |||
| Insertion Loss | Filter Path | 8 | dB | ||
| Bypass Path | 7 | dB | |||
| Input Return Loss | -13 | dB | |||
| Output Return Loss | -13 | dB | |||
| Input IP3 | 43 | dBm | |||
| Input P1dB | 26 | dBm | |||
| Switching Speed (50% Vctrl to 90% of RF Output) | On | <200 | ns | ||
| Off | <200 | ns | |||
| Settling Time @ <0.1dB | TBD | ns | |||
| DC Supply Voltage (Vdd) | 3 | 5 | 5.5 | V | |
| DC Supply Current (Idd) | 16 | mA | |||
| Control Supply Current (Total Ictrl) | 2.5 | mA | |||
| Control Voltage (CTRL) | Low | -0.1 | 0.5 | V | |
| High | 3 | 5.5 | V | ||
| Operating Temperature | -40 | 85 | °C |
